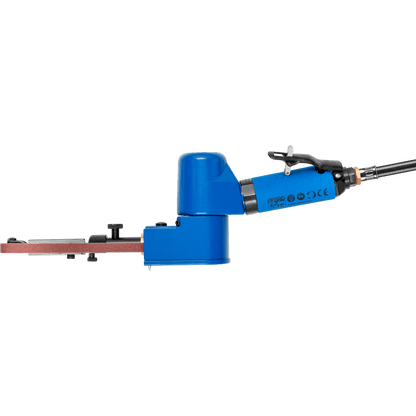

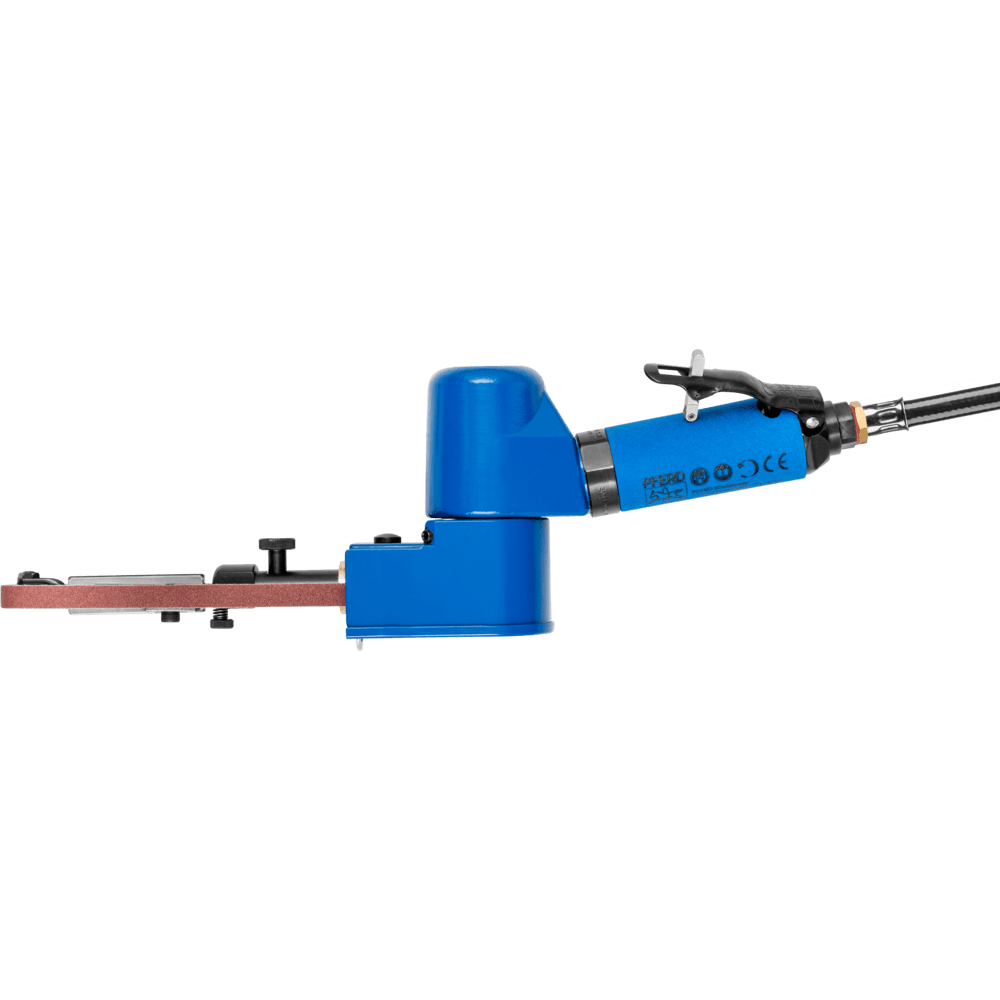

The exhaust direction is at the front. Due to the lever throttle, the drive has a dead man's switch. It can be used with or without oil. Belt grinder with belt grinder attachment BSVA 5/155-8/24x480. 3 m air supply hose with 1/4" male threaded connection and threaded quick coupling (STGI), 2 keys (1x SKS SW 3 mm, 1x SKS SW 5/32"), belt grinder attachment arm BSVA 5/155-8/24 x 480.
Product Details
Product Category: Air-Powered Belt Grinders
Drive Type: Compressed Air
Available Models: 7
Pack Quantity: 1 piece
Brand: PFERD
Advantages
The drive has a pivotable belt grinder attachment.
As the exhaust direction is forwards, it blows the removed substance away in this direction during application.
Safe working using dead man's switch.
Recommended Use

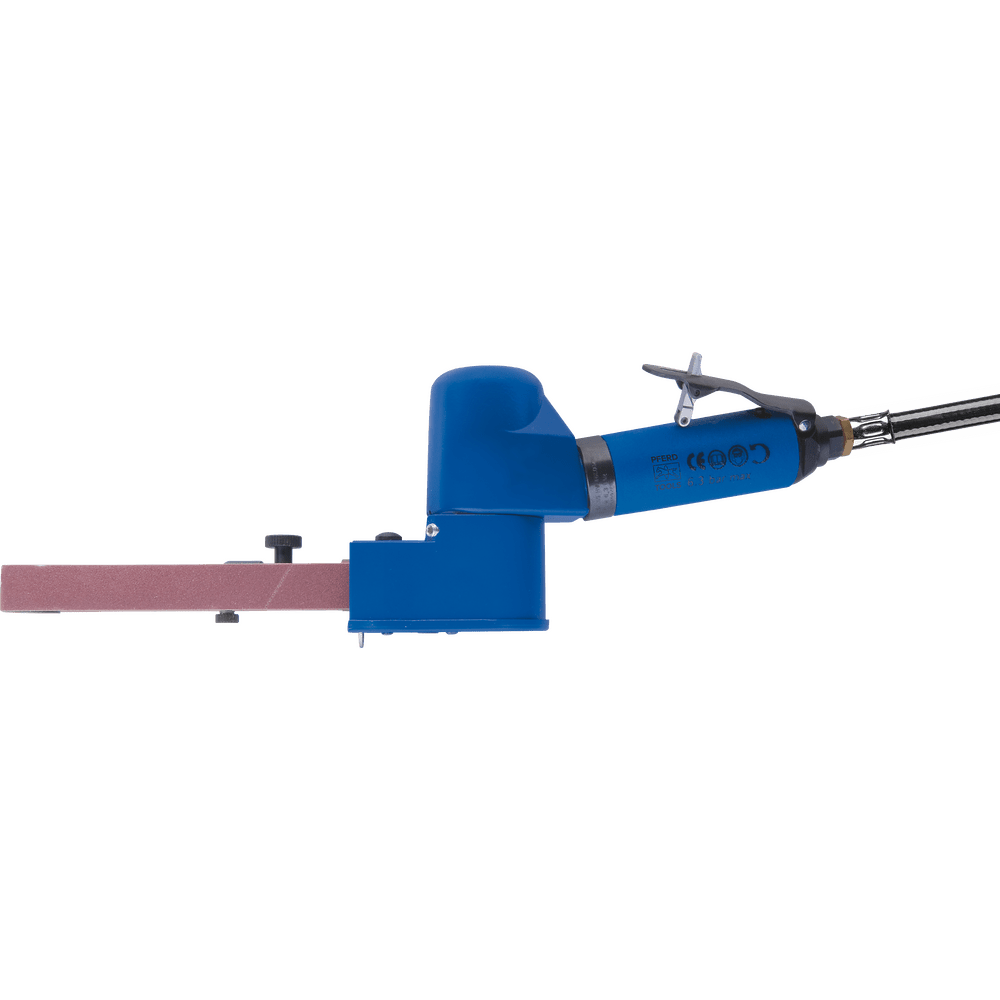

Suitable for belt grinder attachment arms BSVA 5/155-8/24x480, BSVA 5/155-19/24x480, BSVA 5/155-23/24x480, BSVA 5/155-9/16x610 and accessories: Adapter BSAD 41/36x610, protective cover SDVH-G, belt grinder attachment holder oATR. With the belt grinder attachment holders BSVA 5/155-8/24x480, BSVA 5/155-19/24x480, BSVA 5/155-23/24x480, a belt length of 480 x width of 6-25 mm is possible. With the belt grinder attachment holders BSVA 5/155-4/16x610 and BSVA 5/155-9/16x610, a belt length of 610 x width of 6-25 mm is possible. The protective cover covering the drive roller increases occupational safety. It is possible to quickly convert the drives PBS 5/155 HV 824, PBS 5/155 HV 1924, PBS 5/155 HV 2324 using the BSVH oATR. This means it is possible to use other belt dimensions.
